Asus

App location: Stock Firmware tab → Asus

Asus BIOS updates are usually ZIP or RAR files (newer ones are EXE). Older updates can be flashed directly, but most Asus firmware has an 800-byte CAP header that you must remove before flashing. To remove it, drag the extracted firmware into BiosCreator again.

There are two common cases:

Full stock firmware
The file is slightly larger than a valid firmware size (for example, just over 8192 kB).
BIOS region only
The file is much smaller than a valid firmware size (for example, 6144 kB after removing the CAP header). You need a backup firmware to complete it.
On this page
  1. Flowchart
  2. Steps
  3. Examples
    1. Full stock firmware from a ZIP: Asus X407M
    2. BIOS region only from a ZIP: Asus X555LD
    3. Full stock firmware from an EXE: Asus X541NA
    4. BIOS region only from an EXE: Asus X541SA

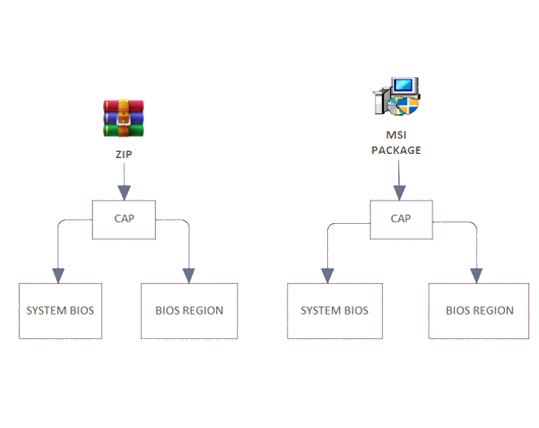

Flowchart

Asus firmware extraction flowchart

Steps

  1. Download the BIOS update from the Asus website.
  2. Extract it with an archive tool or with BiosCreator’s Acer (InsydeFlash) tool.
  3. Remove the CAP header by dragging the extracted file into BiosCreator.
  4. Check whether the BIN file is a full System BIOS or a BIOS region only, using the valid file sizes.
  5. If it is a BIOS region only, follow Repair BIOS region to build the stock firmware.

Examples

Full stock firmware from a ZIP: Asus X407M

Asus X407M full stock firmware from ZIP

BIOS region only from a ZIP: Asus X555LD

Asus X555LD BIOS region from ZIP

Full stock firmware from an EXE: Asus X541NA

Asus X541NA full stock firmware from EXE

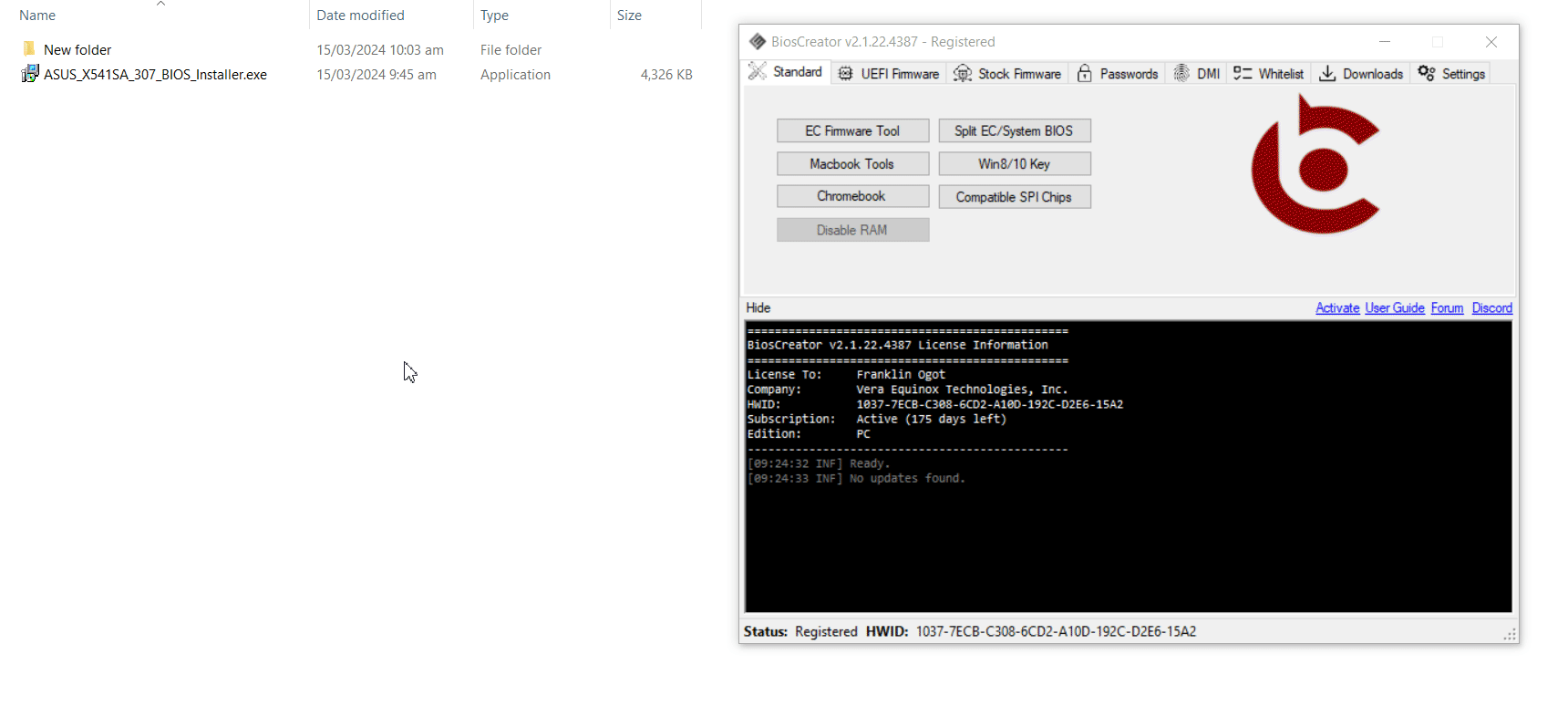

BIOS region only from an EXE: Asus X541SA

Asus X541SA BIOS region from EXE
