Lenovo

App location: Stock Firmware tab → Lenovo

Lenovo packages its firmware in three ways:

  1. InsydeFlash
  2. InnoSetup
  3. Self-extracting file

BiosCreator fully supports InnoSetup and self-extracting files. InsydeFlash is partially supported because of the many capsule file formats and versions.

BiosCreator can download the matching Lenovo BIOS update automatically from your backup firmware.

On this page
  1. Flowchart
  2. InsydeFlash
    1. System BIOS
    2. System BIOS and EC firmware
  3. InnoSetup
    1. System BIOS

Flowchart

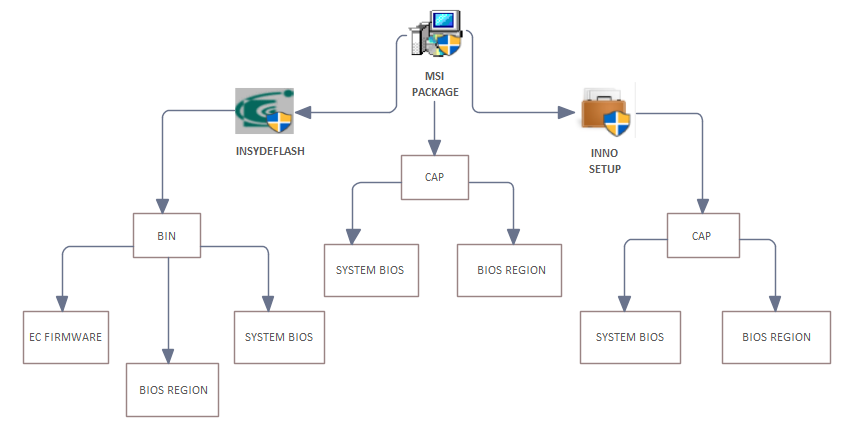

Lenovo firmware extraction flowchart

InsydeFlash

BiosCreator handles InsydeFlash BIOS updates automatically as part of the Lenovo extraction. You don’t need to do anything extra.

System BIOS

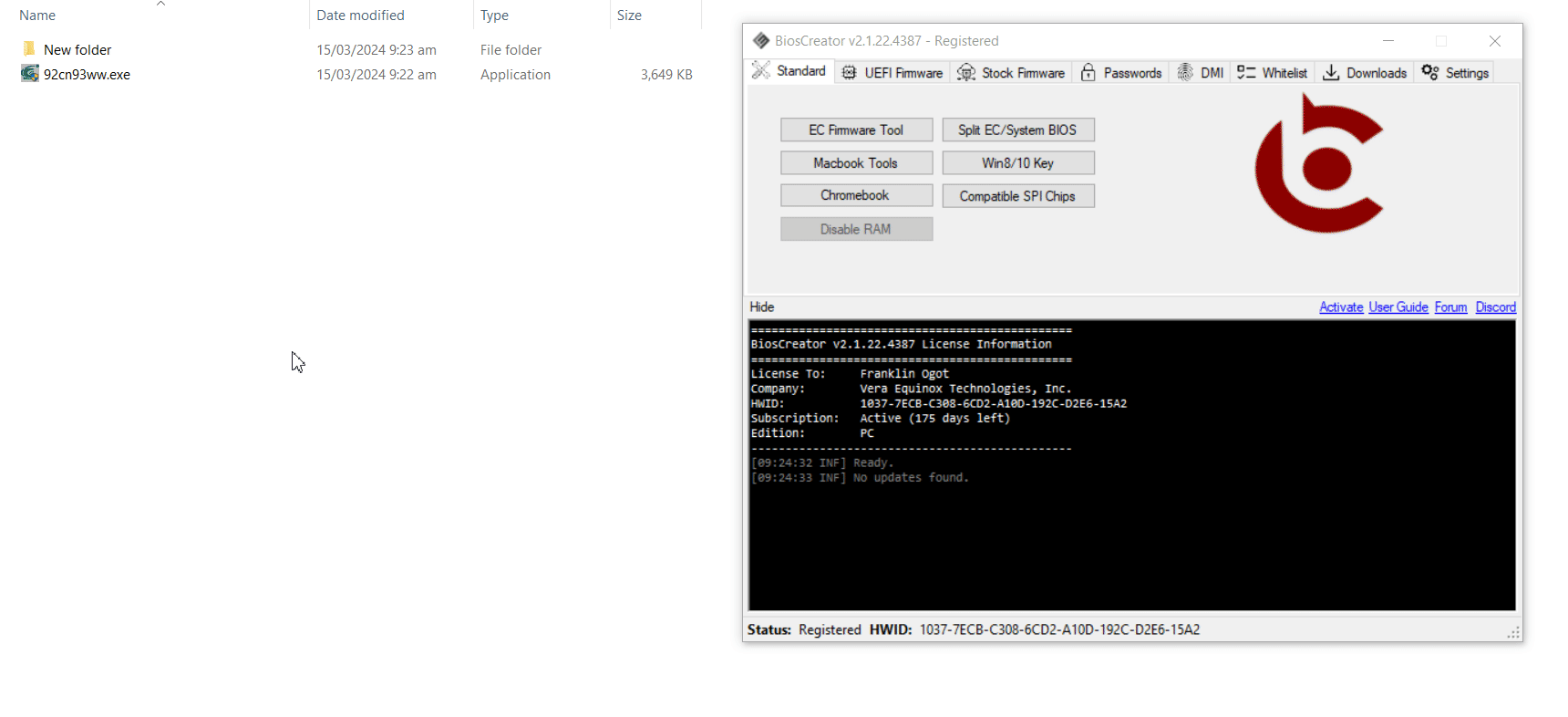

Lenovo InsydeFlash: System BIOS

System BIOS and EC firmware

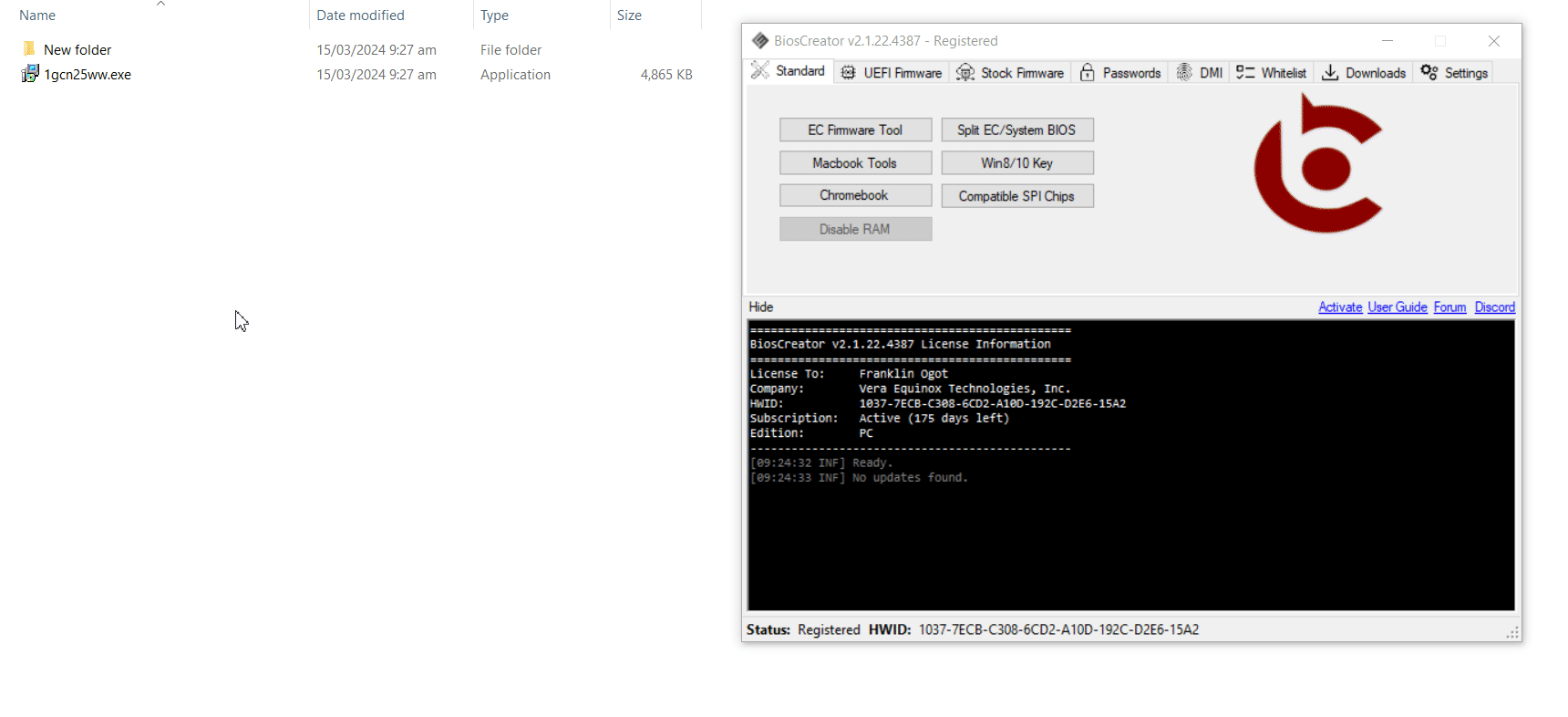

Lenovo InsydeFlash: System BIOS and EC firmware

InnoSetup

BIOS updates packaged with InnoSetup cannot be opened with standard archive tools. BiosCreator extracts them to a capsule (CAP) file.

If the CAP file’s size is not a valid firmware size, it needs further processing.

System BIOS

Lenovo InnoSetup: System BIOS
