UEFI Firmware Tools

Tools for cleaning and replacing the FD, ME/TXE and BIOS regions of a UEFI firmware.

On this page
  1. 8. FD Region
  2. 9. BIOS Region
  3. 10. NVRAM Tool
  4. 11. ME/TXE Region
  5. 12. Region Extractor
  6. 13. EC Region
  7. 14. GbE Region
  8. 15. Merge/Split UEFI F/W

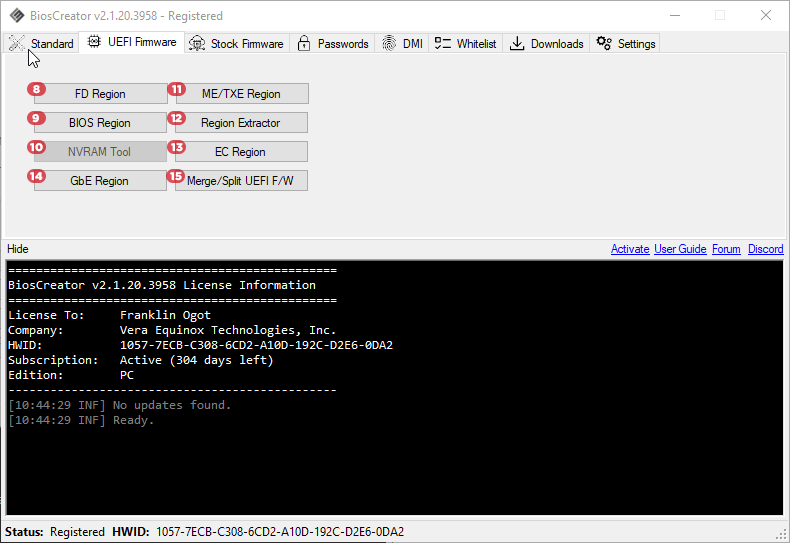

UEFI Firmware tab

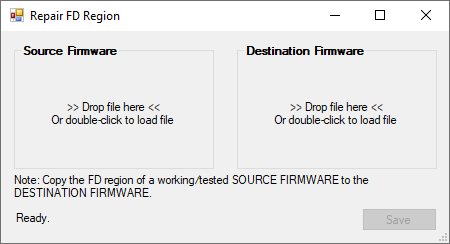

8. FD Region

Repairs a corrupted Flash Descriptor region. See Repair FD region.

FD Region

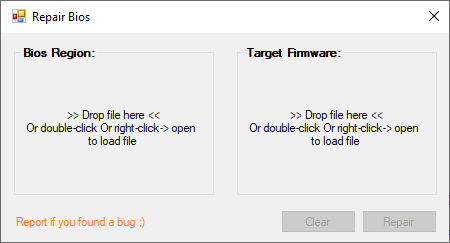

9. BIOS Region

Replaces the BIOS region. Use it to fix problems that cleaning the ME/TXE region alone can’t fix. Commonly used for Asus and Dell UEFI firmware. See Repair BIOS region.

BIOS Region

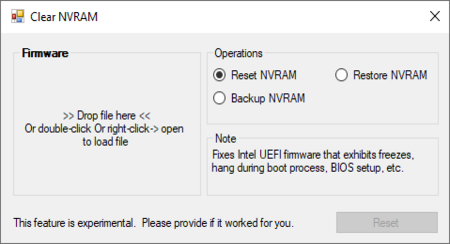

10. NVRAM Tool

Fixes laptops and PCs that hang at the logo, at POST or during OS startup. See Clear NVRAM.

NVRAM Tool

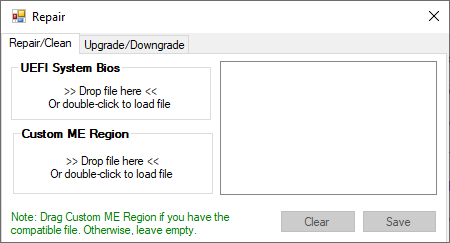

11. ME/TXE Region

Repairs and cleans (resets the initialization data of) the ME/TXE region. It also supports custom ME regions, which are common in Dell BIOS update files. See Clean ME region.

ME/TXE Region

12. Region Extractor

Extracts the FD, ME/TXE and BIOS regions from a UEFI firmware.

Region Extractor

13. EC Region

Replaces or repairs the EC region, for example in Dell UEFI firmware.

EC Region

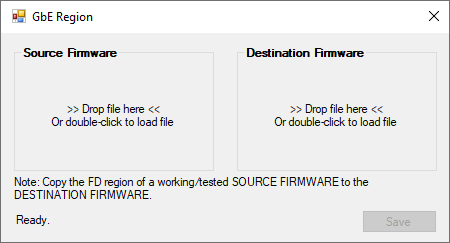

14. GbE Region

Backs up and restores the GbE (Gigabit Ethernet) region.

GbE Region

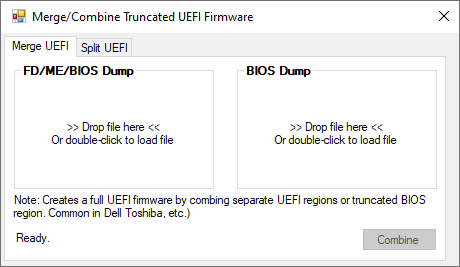

15. Merge/Split UEFI F/W

Combines firmware stored in two SPI chips into one file, or splits a full UEFI firmware into two files for writing to two separate SPI chips.

Merge/Split UEFI F/W
