How to Split Extracted Firmware into System BIOS and EC Firmware

App location: Standard tab → Split EC/System BIOS

Sometimes the EC firmware and System BIOS are combined in one file. For InsydeFlash firmware, BiosCreator splits them automatically during extraction. For other brands, such as HP, you need a few extra steps.

Requirements

Splitting works when:

  • The firmware size is not a valid size, and
  • The firmware size is larger than the valid size,

or when the file is an InsydeFlash file.

Example: HP

1. Extract

After you extract the BIN/FD file, drag it into BiosCreator. BiosCreator tells you if the file needs more processing.

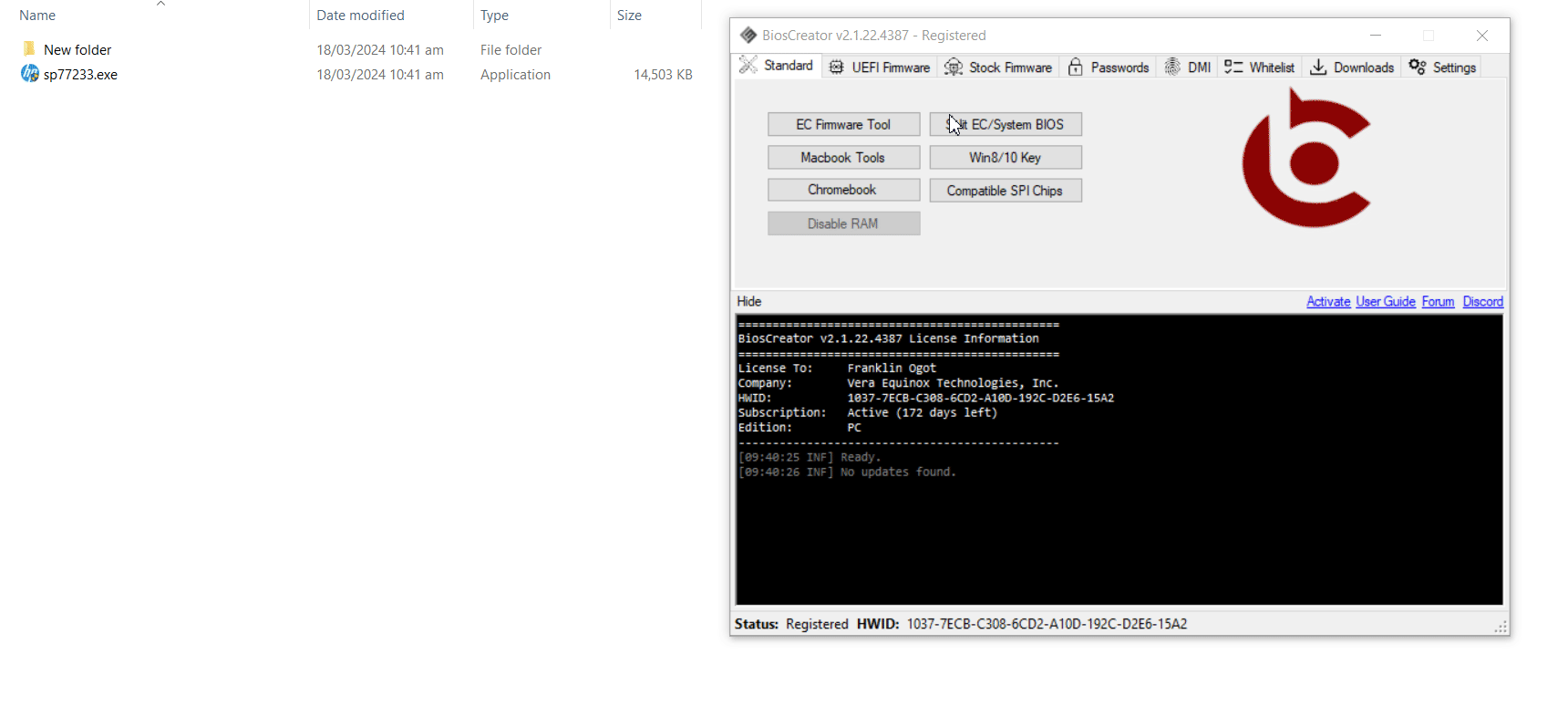

Extracting HP firmware

2. Decrypt

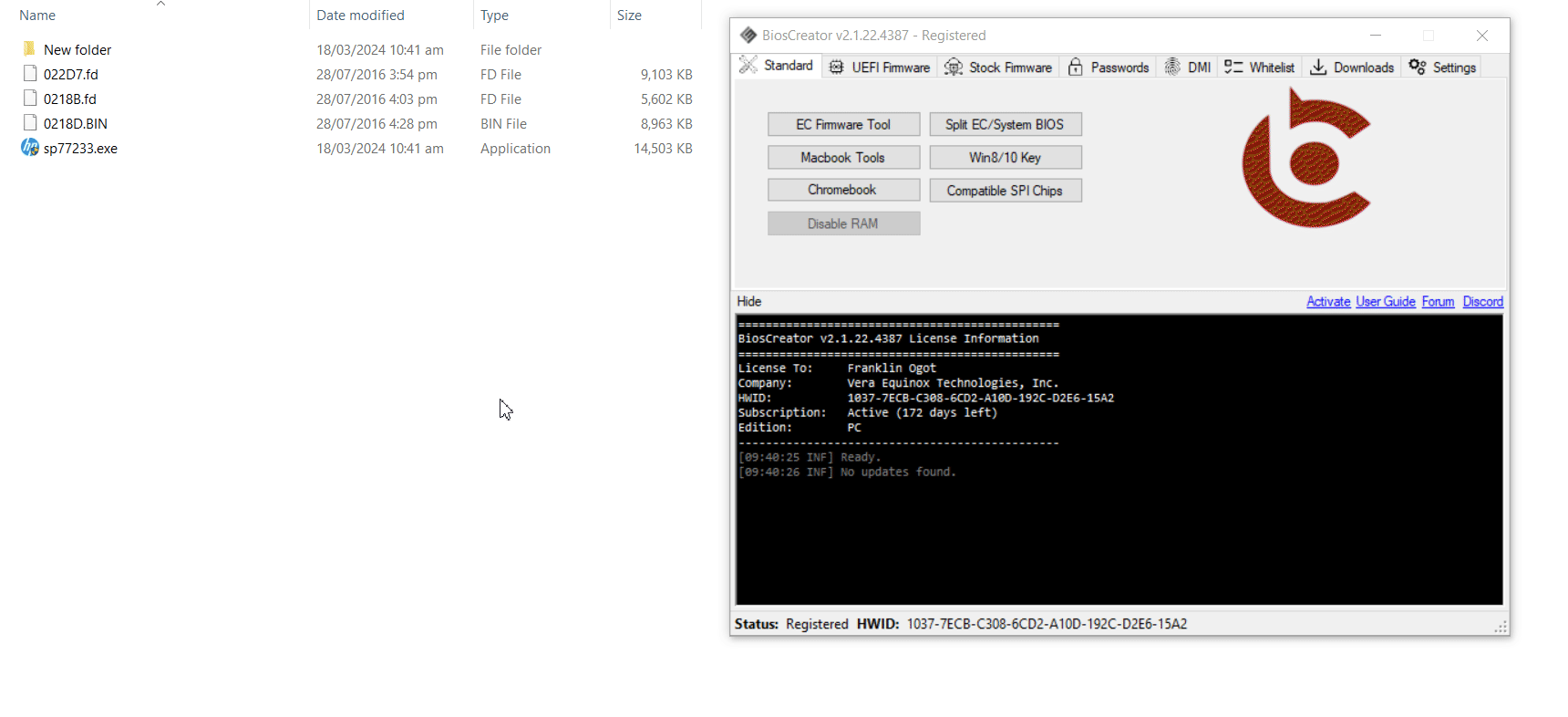

Decrypting HP firmware

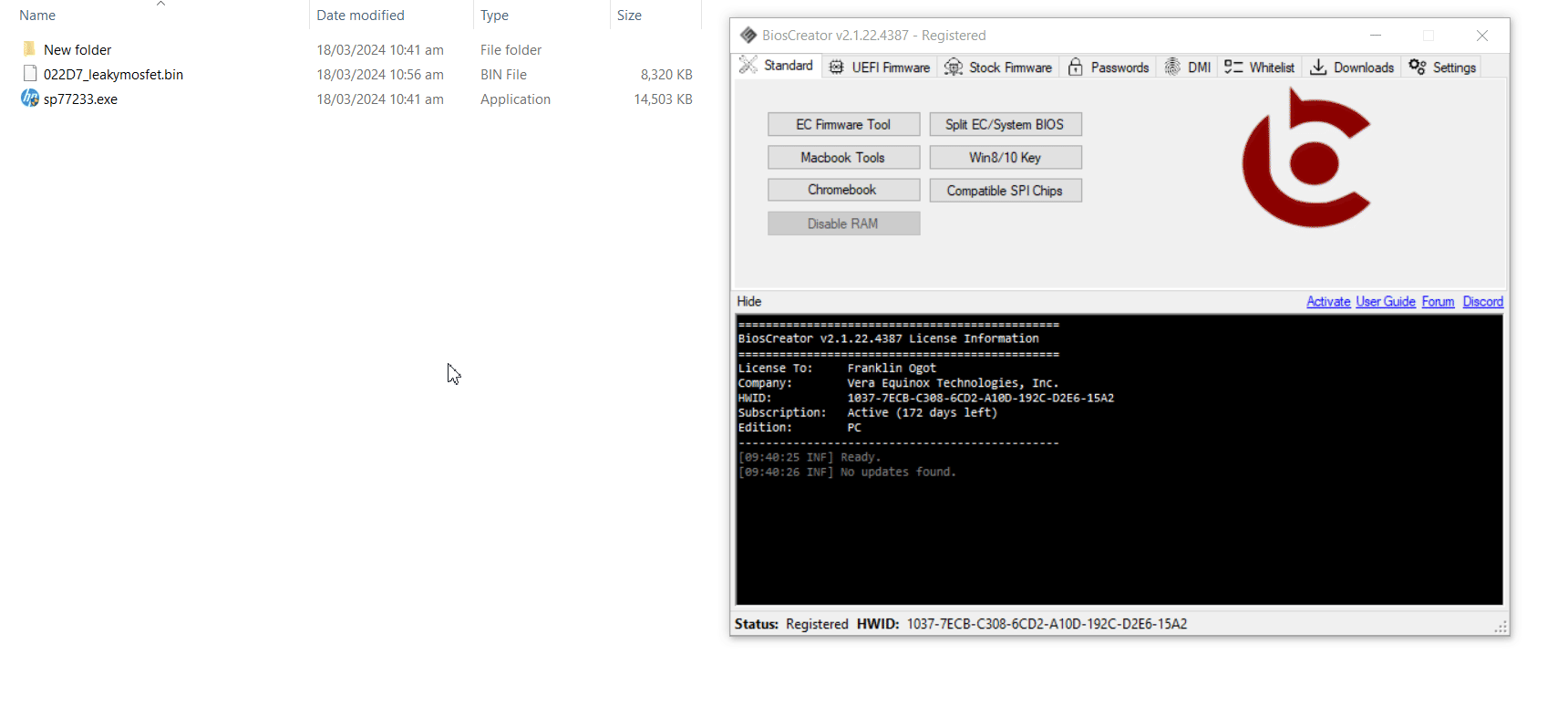

3. Split EC firmware and System BIOS

Splitting EC firmware and System BIOS
